Mobile Rodent Anesthesia Machines

    Mobile Non-rebreathing Anesthesia Machine

    (vaporizer and e-tank manifold optional)

    Designed for safe, simple, and controllable inhalation anesthesia for rats, small rodents, exotics, and patients weighing under 5 pounds (2.27 Kg).

    • 0 to 4 lpm flow meter with expanded 0 to 1 scale
    • Non-rebreathing system with 1 liter bag
    • 5 caster mobile base
    • Oxygen flush valve with safety restrictor
    • Non-rebreathing circuit
    • Dual O2 supply ready with check valves
    • 5 year warranty
    PM1002 Mobile Anesthesia Machine w/ Well-fill Isoflurane vaporizer, Nose Cone Circuit and Double Oxygen Cylinder Manifold *Pictured $2,695.00
    PM1000 Mobile Anesthesia Machine w/ Nose Cone Circuit
    *Without Vaporizer & Oxygen Cylinder Manifold
    $1,195.00
    PM1000V Mobile Anesthesia Unit w/ Well-fill Isoflurane Vaporizer & Nose Cone Circuit *Without Oxygen Cylinder Manifold $2,295.00
    Optional Dual Induction Kit
    RES3010 6″x8″x4″ Induction Chamber & Equalized Dual Diverter Valve Manifold w/ Mounting Bracket $365.00

    *Oxygen tanks not included

    Pureline M6100 Anesthesia Machine W/ O2 Concentrator

    Mobile Non-Rebreathing Anesthesia Machine w/ Oxygen Concentrator

    No tanks, tank refills, or tank management! The built-in E-tank manifold allows for mobile use of the machine without power and also provides back-up in case of power failure.

    • Designed specifically for small animals
    • Extracts medical grade oxygen (USP93%) from the air and delivers it on demand- up to 5 LPM
    • Safety back-up oxygen supply (standard E tank) with fully integrated O2 flush with industry standard 30 LPM maximum flow
    • Ability to use oxygen flush with a simple built in switch
    • Oxygen purity and flow-safety alarms
    • Sturdy A-frame base
    • 0-4LPM precision oxygen flow meter w/ mechanical stop flow control
    • FDA approved, UL tested
    • Quiet 40-dBA operation
    • Made in the USA, state-of-the-art manufacturing with ISO quality and TUV SUV safety certifications
    Pureline M6100 Anesthesia Machine W/ O2 Concentrator
    Mobile Non-Rebreathing Anesthesia Machine w/ Oxygen ConcentratorNo tanks, tank refills, or tank management! The built-in E-tank manifold allows for mobile use of the machine without power and also provides back-up in case of power failure.

    • Designed specifically for small animals
    • Extracts medical grade oxygen (USP93%) from the air and delivers it on demand- up to 5 LPM
    • Safety back-up oxygen supply (standard E tank) with fully integrated O2 flush with industry standard 30 LPM maximum flow
    • Ability to use oxygen flush with a simple built in switch
    • Oxygen purity and flow-safety alarms
    • Sturdy A-frame base
    • 0-4LPM precision oxygen flow meter w/ mechanical stop flow control
    • FDA approved, UL tested
    • Quiet 40-dBA operation
    • Made in the USA, state-of-the-art manufacturing with ISO quality and TUV SUV safety certifications
    M6100 Anesthesia Machine/ Concentrator – No Vaporizer
    *Free Shipping within the contiguous US.
    $3,320.00
    M6100V Anesthesia Machine/ Concentrator with V3000i TEC3 Isoflurane Vaporizer $4,363.00
    OC4000 Portable Oxygen Concentrator Only – Without Anesthesia Machine, Stand or Vaporizer $1,325.00

    Recommended Flowmeter & Vaporizer settings

    Multi Station Board with Nose Cones



    Shown with Anesthesia machine, vaporizer & 6-place supply manifold.

    Shows surgical board minus one nose-cone & plug.







    Features:

    • 6 numbered subject positions
    • 22mm evacuation port for passive evacuation of gases
    • Adjustable holding straps (extra tubing included)
    • Uses industry standard RES500 coaxial non-rebreathing nose cone circuit
    • The number of circuits can be adjusted using plugs included.
    • Includes 10′ of 22mm evacuation hose
    • Can be used with F/AIR Canisters
    RES3100 Multi-Station Board without nose-cone circuits $698.00
    RES3200 Multi-Station Board with 6 nose-cone circuits $1,097.00
    RES3160 Rubber tie downs – each $12.00
    RES537 6 – Port Stainless Manifold w/ Splitter Valves & Tubing $307.00

    NOTE: Color of base has been changed to white.

    > Click for More Information

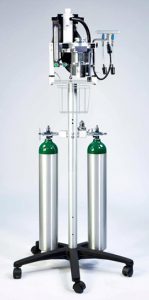

    M3100 Mobile to Table-Top Convertible Anesthesia Machine

    The M3100 combines the value of the M3000 in a model that can be both mobile and table-top. Non-rebreathing design for use with mice, rats and other small mammals

    • Can be used with or without the sturdy base. Easily removable pins secure anesthesia machine to caster base when necessary.
    • Easy to clean powder coating
    • 0-4 LPM O2 flow meter with mechanical stop flow control
      *Other carrier gas and LPM range flow meters available upon request.
    • Oxygen flush with industry standard 30 LPM safety restrictor
    • Compatible with any vaporizer
    • Shown with optional accessories including Multi-Station Manifold, Waste Gas Interface and Dual E-tank Manifold
    • Oxygen cylinders not included
    M3100 Convertible Anesthesia – No Vaporizer $1,674
    M3100V Convertible Anesthesia with Isoflurane Vaporizer $2,810

    Recommended Flowmeter & Vaporizer settings

    Anti-Spill adapter

    This Anti-Spill adapter eliminates spillage when filling standard Tec-3 style well-fill vaporizers.

    PA5025 Isoflurane Anti-Spill Device $45.00
    PA5026 Sevoflurane Anti-Spill Device $45.00

    F/AIR Scavenger System

    This economical and practical passive scavenger system incorporates replaceable filter cartridges to absorb waste gases. Activated charcoal filter absorbs 125% of its own weight. Kit includes one cartridge, scavenger hose, Pop-off connection adapters, and cartridge holder bracket.

    80000 F/AIR KIT w/ Post Mount & Hoses $31.00
    80120 Replacement cartridge $8.99

    Non-rebreathing Circuit

    non-rebreathing circuit (recommended for patients under 10 kgs) connects vaporizer outlet to anesthesia mask and features a a standard exhaust hose for scavenging. This item includes an anesthetic gas supply tube with 15 mm male fitting, a reservoir tube, a reservoir bag, and a 19 mm bag bleed valve. (Included with anesthesia machines)

    A518 Non-rebreathing System $27.00

    V3000 Vaporizers

    These precision TEC3 vaporizers offer calibrated dials with detents and safety lock, large window and precision output not affected by temperature, flow rate, liquid level or back pressure fluctuation. New vaporizers offer a full three year warranty.
    Includes:

    • Automatic flow rate and temperature compensation
    • Large easy to read dial
    • Integrated safety lock
    • Large window for liquid level monitoring
    • Well-fill and Key-fill models available
    • 3 year warranty ? new / 1 year warranty – used
    V3000i New Isoflurane Vaporizer / Well-Fill $1,265.00
    V3000i-K New Isoflurane Vaporizer / Key-Fill $1,445.00
    V3000S New Sevofluorane Vaporizer / Well-Fill $1,265.00
    V3000S-K New Sevofluorane Vaporizer / Key-Fill $1,445.00
