Mobile Non-rebreathing Anesthesia Machine
(vaporizer and e-tank manifold optional)
Designed for safe, simple, and controllable inhalation anesthesia for rats, small rodents, exotics, and patients weighing under 5 pounds (2.27 Kg).
- 0 to 4 lpm flow meter with expanded 0 to 1 scale
- Non-rebreathing system with 1 liter bag
- Heavy Duty stable A-frame Base
- Oxygen flush valve with safety restrictor
- Non-rebreathing circuit
- Dual O2 supply ready with check valves
- 5 year warranty *Made in USA.

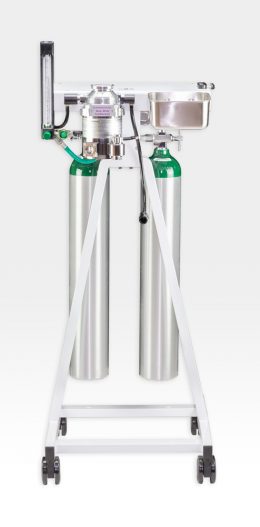

| PM1002 | Mobile Anesthesia Machine w/ Well-fill Isoflurane vaporizer, Nose Cone Circuit and Double Oxygen Cylinder Manifold *Pictured | $3,290.00 | |
| PM1000 | Mobile Anesthesia Machine w/ Nose Cone Circuit *Without Vaporizer & Oxygen Cylinder Manifold |
$1430.00 | |
| PM1000V | Mobile Anesthesia Unit w/ Well-fill Isoflurane Vaporizer & Nose Cone Circuit *Without Oxygen Cylinder Manifold | $2698.00 | |
| Optional Dual Induction Kit | |||
|---|---|---|---|
| RES3011 | 6″x8″x4″ Induction Chamber & Equalized Dual Diverter Valve Manifold w/ Mounting Bracket | $414.00 | |
*Oxygen tanks not included
Related products
- Designed specifically for small animals
- Extracts medical grade oxygen (USP93%) from the air and delivers it on demand- up to 5 LPM
- Safety back-up oxygen supply (standard E tank) with fully integrated O2 flush with industry standard 30 LPM maximum flow
- Ability to use oxygen flush with a simple built in switch
- Oxygen purity and flow-safety alarms
- Sturdy A-frame base
- 0-4LPM precision oxygen flow meter w/ mechanical stop flow control
- FDA approved, UL tested
- Quiet 40-dBA operation
- Made in the USA, state-of-the-art manufacturing with ISO quality and TUV SUV safety certifications
- Designed specifically for small animals
- Extracts medical grade oxygen (USP93%) from the air and delivers it on demand- up to 5 LPM
- Safety back-up oxygen supply (standard E tank) with fully integrated O2 flush with industry standard 30 LPM maximum flow
- Ability to use oxygen flush with a simple built in switch
- Oxygen purity and flow-safety alarms
- Sturdy A-frame base
- 0-4LPM precision oxygen flow meter w/ mechanical stop flow control
- FDA approved, UL tested
- Quiet 40-dBA operation
- Made in the USA, state-of-the-art manufacturing with ISO quality and TUV SUV safety certifications
- Automatic flow rate and temperature compensation
- Large easy to read dial
- Integrated safety lock
- Large window for liquid level monitoring
- Well-fill and Key-fill models available
- 3 year warranty ? new / 1 year warranty – used
F/AIR Scavenger System
This economical and practical passive scavenger system incorporates replaceable filter cartridges to absorb waste gases. Activated charcoal filter absorbs 125% of its own weight. Kit includes one cartridge, scavenger hose, Pop-off connection adapters, and cartridge holder bracket.
|
|||||||||
Pureline M6100 Anesthesia Machine W/ O2 Concentrator
Mobile Non-Rebreathing Anesthesia Machine w/ Oxygen Concentrator
No tanks, tank refills, or tank management! The built-in E-tank manifold allows for mobile use of the machine without power and also provides back-up in case of power failure.
| Pureline M6100 Anesthesia Machine W/ O2 Concentrator Mobile Non-Rebreathing Anesthesia Machine w/ Oxygen ConcentratorNo tanks, tank refills, or tank management! The built-in E-tank manifold allows for mobile use of the machine without power and also provides back-up in case of power failure. |
|||||||||||||
|
|||||||||||||
V3000 Vaporizers
These precision TEC3 vaporizers offer calibrated dials with detents and safety lock, large window and precision output not affected by temperature, flow rate, liquid level or back pressure fluctuation. New vaporizers offer a full three year warranty.
Includes:
|
|||||||||||||||||
Model 2000 and 2002 VENTILATORS
Electronically controlled, time-cycled, pressure limited ventilators.
Electronic control– Eliminates the substantial driving gas required to operate pneumatically controlled ventilators.
Time cycled– Insures consistently spaced breaths. The possibility of stacking breaths or auto-PEEP is eliminated by keeping the I:E ratio constant at 1:2. This means that regardless of the respiratory rate setting two-thirds of each breath will remain for expiration. The respiratory rate is adjustable from 6 – 40 breaths per minute (BPM).
| Volume constant — Insures that each delivered breath will have essentially the same volume, independent of changes in patient compliance and airway resistance. The deliverable tidal volume (TV) range is from approximately 20ml to 3,000ml using 3 interchangeable bellows and bellows housings as seen here. Most small animal facilities require only the small bellows attachment , seen at the left, with the standard size ventilator, center.
Pressure Limited– Provides for patient safety by limiting the maximum working pressure (MWPL) to a user adjustable pressure range of 10 – 60 cm H2O. The Model 2002 was introduced after numerous customer requests for a finer volume adjustment at the low end of the range. We added a finer volume control in parallel with the existing control on the Model 2000. Everything else about the Model 2002 is identical to the Model 2000. Both ventilators are equipped with dual airway pressure alarms that monitor and sound when the peak inspiratory pressure (PIP) of any breath either exceeds the preset maximum working pressure limit (MWPL) or fails to reach 6 cm H2O as in the case of a disconnect . A Low Supply Gas Alarm available as an option, would sound when the supply gas pressure falls below 35 psi, 2.4bar. The normal supply gas operating pressure is 50psi or 3.5bar. It is not until 35psi or 2.4bar that the ventilators delivered volume will begin to drop off proportionally with the supply pressure. |
|
|||||||||
* NOTE: Above units include 0-300 ml bellows, housing and adapter.
Optional 300 -1600 ml bellows kit is priced at $350.00
