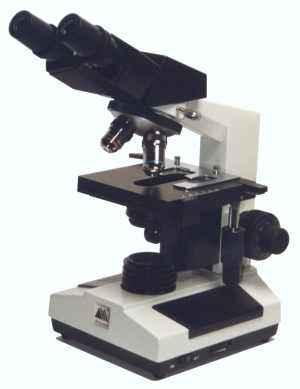

REVELATION-3 MICROSCOPE
The REVELATION 3 microscope features a rugged stand and an anti-fungal coating on the optics.
- 4x , 10x , 40xR , 100xR/ DIN Achromat Oil achromat Objectives
- 3W Variable LED light source, 100-240V
- Binocular or Trinocular Inclined 30°, rotates 360°
- 1.25 NA ABBE Condenser with Iris Diaphragm & Filters
- Seidentopf Head with 12.5X Eyepieces
- Optional Carry case & Car Battery Adapter
- Limited Lifetime Warranty on Stand & Optics/One Year Warranty on electronics.
|
|||||||||||||
Related products
- Video Chip: 1/3″ Color CCD
- Test Display: 24 Alphanumeric Characters (On/Off selectable)
- Backlight Comp. On/Off Selectable (6 sensing zones)
- Special Menu: Gamma, Color Adjustment, Sharpness, Contrast, Brightness, Flickerless, and Preset
- Lens: C/CS Mount, F1.2, 8mm, Manual Iris
- Power: DC12V~DC13V, 2.5W
- Operating Conditions: -10C to 50C (14F to 122F), Less than 85% Relative Humidity
- Signal System: NTSC, PAL
- Output: S-Video, BNC Composite
- Horizontal Resolution: 470 TV Lines
- Sensitivity: 0.8 Lux
- Electronic Shutter: Off/Auto/Manual
- White Balance: Selectable Auto-Tracking (ATW), Preset (AWC), and Manual
- Dimensions:
Width: 1.6″ (41mm)
Height: 1.6″ (41mm)
Depth: 2.1″ (51.6mm)
Weight: 0.31 lbs (140g) - 4X , 10X , 40X , 100X/Oil Semi-Plan Objectives
- Infinity corrected optics
- LED Illumination
- 1.25 NA ABBE Condenser with Iris Diaphragm & Filters
- Seidentopf Head with 12.5X Eyepieces
- Limited Lifetime Warranty on Stand & Optics/One Year Warranty on electronics.
- Super-wide eyepieces help eliminate eyestrain
- BioVID Camera with Image Management Software
- Optional Omnivid camera with 2″ display
- 3x to 22.5x magnification (up to 45x with 1/2x reducing lens removed)
- Trinocular Head & TFT screen
- Boom Stand with Advanced Articulating Arm
- 0.5x supplementary lens
- Variable LED Ring Light w/ 60 bulbs 6400K Daylight color
- 4 controllable LED light quadrants for shadowing
- Optional Fiber-Optic Ring Light
- Easily plugs into a large monitor
BioVID Camera
The BioVID has been completely redesigned for 2003. Features include BNC-RCA and S video outputs as well as on-screen programming, allowing the user to modify and improve the image. Connect the camera to your trinocular microcope with a C or CS mount or use the included macro lens and eyepiece adapter to work with a variety of optical equipment. The BioVID directly is an excelenttoolfor demonstations and for industrial and medical applications.
Features:
| BVN110 | BioVID Camera, NTSC (also available in 220V) | $989.00 | |
| BVP110 | BioVID Camera, PAL (also available in 220V) | $979.00 | |
| BV-EZC | EZ Capture Card | $309.00 |
i4 SEMI-PLAN LED MICROSCOPE
Infinity Semi-Plan optics with a 30-year anti-fungal coating match quality with value within any clinic’s budget.
| Model I4M-BN4A-ISL3 | i4 SEMI-PLAN MICROSCOPE | $1599.00 |
Video Zoom Scope
|
||||||
