RESEARCH ANESTHESIA ACCESSORIES

    Large tank Oxygen Pressure Regulator

    This medical oxygen regulator is preset to 50 PSI for ideal use with a veterinary anesthesia machine and may be used on large oxygen tanks such as H or K tanks. A male DISS-F connector allows easy connection to any O2 hose equipped with a DISS-F connector.

    A508 Pressure Regulator $105.00

    E -Tank Oxygen Pressure Regulator

    This medical oxygen regulator is preset to 50 and equipped with a CGA-870 E- tank yoke for use with small oxygen tanks. A male DISS-F connector allows easy connection to any O2 hose equipped with a DISS-F connector.

    Ml-870-P Small Tank Oxygen Regulator $105.00

    Ohmeda Oxygen Quick-Connects

    These versatile connectors allow an anesthesia machine equipped with a male Quick-connect, fast access to an oxygen source via ohmeda female quick-connects. Female connectors shut off the flow of oxygen unless connected to a male, and may be used for ceiling drops,etc. Custom lengths of green high-pressure O2 hose may be ordered by the foot and fitted with the connectors of your choice. DISS-F “screw-on” connectors are available to attach a short hose with male Quick-connect to the anesthesia machine.

    34020 Ohmeda Male Quick-Connect $38.00
    34020F Ohmeda Female Quick-Connect $48.00
    25000 Oxygen Hose Per/Foot $2.60
    24240 DISS Female threaded Connector $9.00

    Chemetron Oxygen Quick-Connects

    These Quick-Connects offer an economical alternative to Ohmeda connectors allowing anesthesia machines equipped with a male Chemetron brand Quick-connect, fast access to an oxygen source equipped with Chemetron female quick-connects. Female connectors shut off the flow of oxygen unless connected to a male. Custom lengths of green high-pressure O2 hose may be ordered by the foot and fitted with the connectors of your choice. * DISS-F “screw-on” connectors are also available for connection to anesthesia machine flowmeter or to tank regulator.

    34010 Chemetron Male Quick-Connect $38.00
    34010F Chemetron Female Quick-Connect $48.00
    25000 Oxygen Hose Per/Foot $2.60
    24240 DISS Female threaded Connector $9.00

    Cylinder Floor Stand

    Floor base holds C, D, or E cylinders.

    MCS Cylinder floor stand $45.00

    Rodent Non-Rebreathing Circuit with Nose Cone

    This acrylic manifold allows the position of the inside gas supply tube to be adjusted for any size rat or mouse, reducing dead-space and preventing CO2 build up. The nose gasket can be customized to fit any shape by cutting a hole in the diaphragm, and the evacuation end accepts both 19mm & 22mm hosing. Includes 10 replaceable diaphragms. ARES500 nosecone/mask measures 25mm diameter. An optional 38mm diameter mask is available for larger rodents.

    Model ARES500 Rodent Non-Rebreathing Circuit with Nose Cone $72.00
    Model ARES505 Waste Gas interface to connect RES500 to medical vacuum outlets. $55.00

    Small Animal Anesthesia Masks

    Plastic anesthesia masks are available in a broad range of patients including large rodents, cats, dogs, and exotics. The masks feature a 15mm connector, clear cone for full visualization and a highly flexible, replaceable rubber diaphragm to help provide a leak-free fit.

    Item 93805027 Small feline 1-3/4″ OD x 7/8″ ID x 15/16″L $49.00
    Item 93805028 Medium feline 2-1/4″ OD x 1-3/16″ ID x 1-1/8″L $49.00
    Item 93805029 Large feline 2-3/8″ OD x 1-5/16″ ID x 1-3/8″L $49.00
    Item 93815026 Small Canine 3-7/16″ OD x 1-3/16″ ID x 2-7/8″L $54.00
    Item 93815028 Large Canine 5-1/8″ OD x 2-1/8″ ID x 4-3/4″L $54.00
    Item 91815014-18 Replacement Diaphragms (Specify size) $33.00

    Click to view Related Items :





    Gas Anesthesia Mask for Stereotaxic

    Designed for mice or rats in a Stereotaxic Instrument. The Gas Adaptors for Stereotaxic instruments, enable gas anesthesia of rats or mice in a Lab Standardâ„¢ or other stereotaxic instrument, without exposing the researcher to the gas. The Gas Anesthesia mask is installed by removing the nose clamp from the standard rat adaptor, and sliding the adaptor over the incisor bar, with the cone opening toward the open “U”. The animal (rat or mouse) is installed by placing its teeth over the incisor bar, and sliding the adaptor forward until the cone is snug about the animal’s nose, thereby substituting for the nose clamp. The teeth and the cone provide a snug, stable hold. Anesthetic gas flows in the tubing connector, past the animal’s nose, and out the other side, where it may be routed to recycling, exhaust, or gas analysis instruments.

    Model 51609 Gas Anesthesia Mask, Mouse -Pictured at left $239.00
    Model 51610 Gas Anesthesia Mask, Rat -Pictured at right (Rat Adapter not included) $239.00

    Oxygen Cylinder Cart

    Height adjustable cart accepts both E and D cylinders.

    PX-1020 Cylinder Cart $34.00
    PX-1020-E Cylinder Cart with E Cylinder $100.00

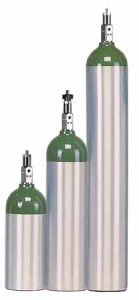

    Oxygen Cylinders

    Model # Description Specifications Price
    PX-8703-1T E Cylinder 25″x 4.5″ / 679 Liters/ 7.3 lbs / 2015psi / Toggle valve $72.00
    PX-8702-1T D Cylinder 16″x 4.5″ / 425 Liters / 5.1 lbs / 2015psi / Toggle valve $69.00
    PX-8701-1T M9-C Cylinder 10.5″x 4.5″ / 246 Liters / 3.6 lbs / 2015psi / Toggle valve $66.00

    *NOTE: Cylinders are shipped empty.
    *Add suffix -1W to substitute a wrench in place of toggle valve.

    RES505 Waste Gas Interface

    This Waste Gas Interface connects the RES500 (see above) to medical suction or WAGD outlets. The evacuation end of the RES500 non-rebreathing circuit fits directly into the interface and a convenient dial allows you to adjust the suction flow rate to prevent excessive negative pressure from your active evacuation or suction system.

    Model ARES505 Waste Gas interface to connect RES500 to medical vacuum outlets. $42.00
